RGBW LED Dimmer Wall Switch,Wall- Mounted Plastic Cover Touch Panel Switch

RGBW LED Dimmer Wall Switch,Wall- Mounted Plastic Cover Touch Panel Switch for DC 12V-24V 3528 5050 Multi-Color RGB RGBW LED Strip Lighting
A quick and easy way to control LED strip light.
Plastic control panel: smooth to touch and easy to clean.
High compatibility: compatible with most 12V-24V RGB LED light fixtures.
Lock lights to your desirable brightness immediately, gradual or instant brightness adjustment.
According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change

Specification:
Touch Panel Full Color Dimmer Controller For RGBW LED Strip
Working Temperature: -20-60 Celsius
Supply Voltage: DC12~24V
Output: 4 channels
Connection Mode: common anode

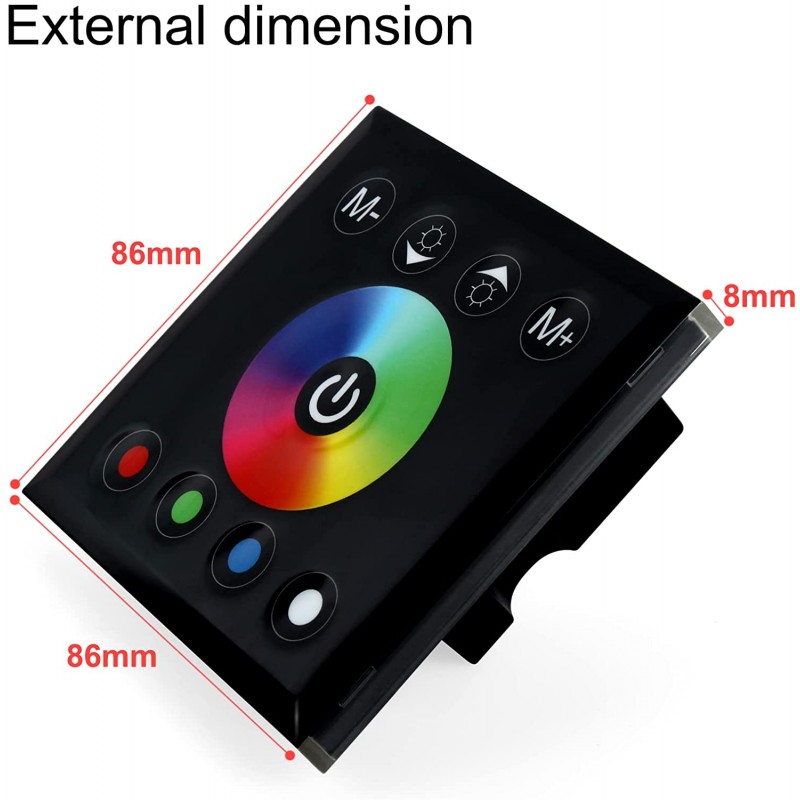

External Dimension: L86 x W86 x H32 mm
Static Power: <1W
Output Current: <4A( each channel )
Output Power: 12V<144W,24V<288W

Remarks:

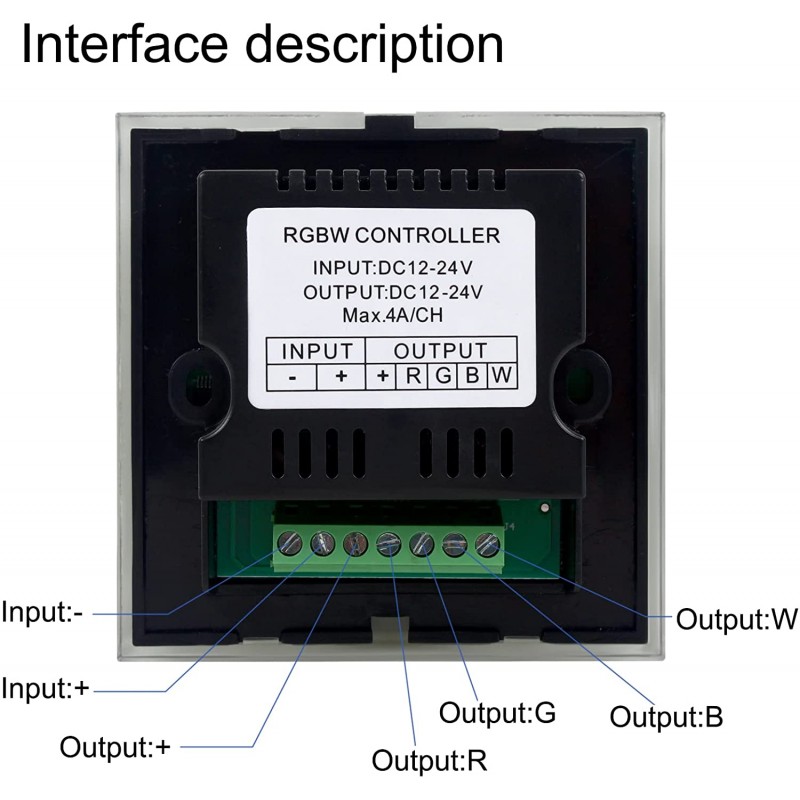

Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power.
The supply voltage of controller ranges in DC12v-dc24v, it may burn out the controller once exceed the voltage ranges.

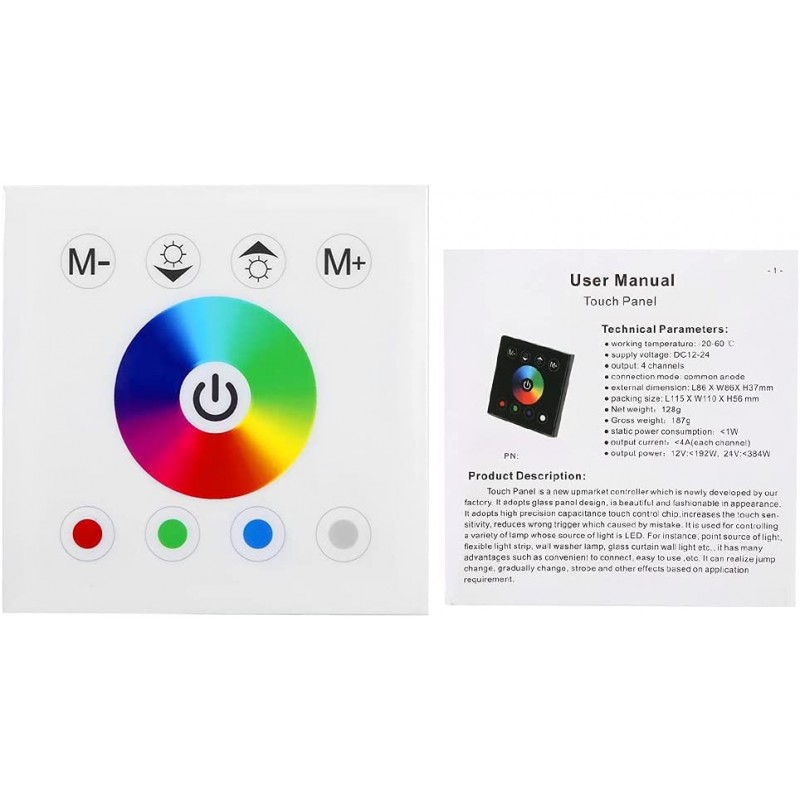

Package Included
1 x RGBW Led Touch Controller
1x User Manual
