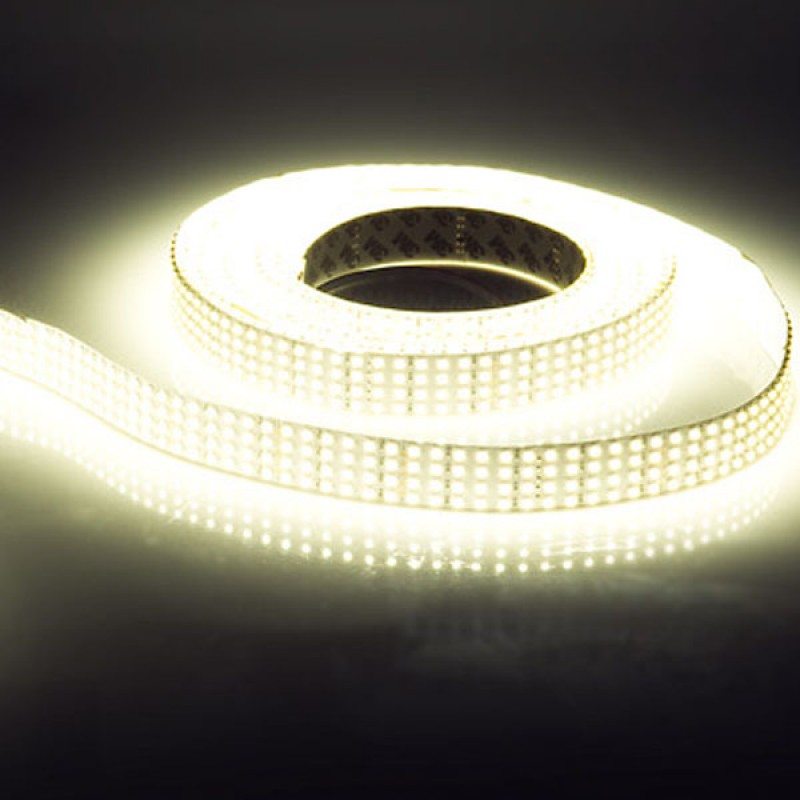

Quad Row LED Strip Lights - 24VDC 3528SMD 146LEDs/Ft High CRI 95 - Brightest Flexible LED Tape Lights - 1,170 Lumens/Ft - 2400 LEDs 16.4Ft Per Roll for Photographic Lighting

Universal 24V quad row single color brightest led strip high density 3528 SMD Non-waterproof Flexible LED light strips, Epistar chip, 480LEDs/3.28ft, 16.4ft Per Reel By Sale.

Our brightest Flexible LED Solid Color light Strips soft and easy bent for installation. Available in 5 meters (197 in) Non-weatherproof flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67/IP68 type which will come with mounting brackets). can be cut into 24-LED segments, so you could cut a different length for your project and request. The LED strips Suitable for the average home lighting as well as lighting professionals. 24VDC operation. Dimmable - Connect LED Smart Dimmers.

Product Specification

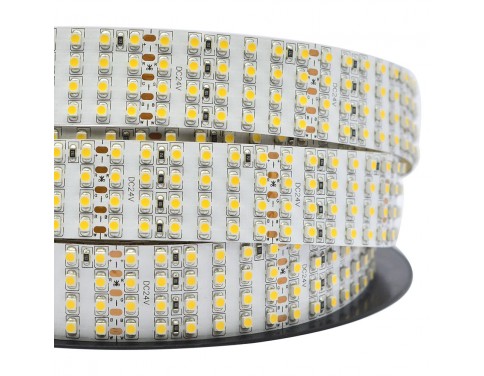

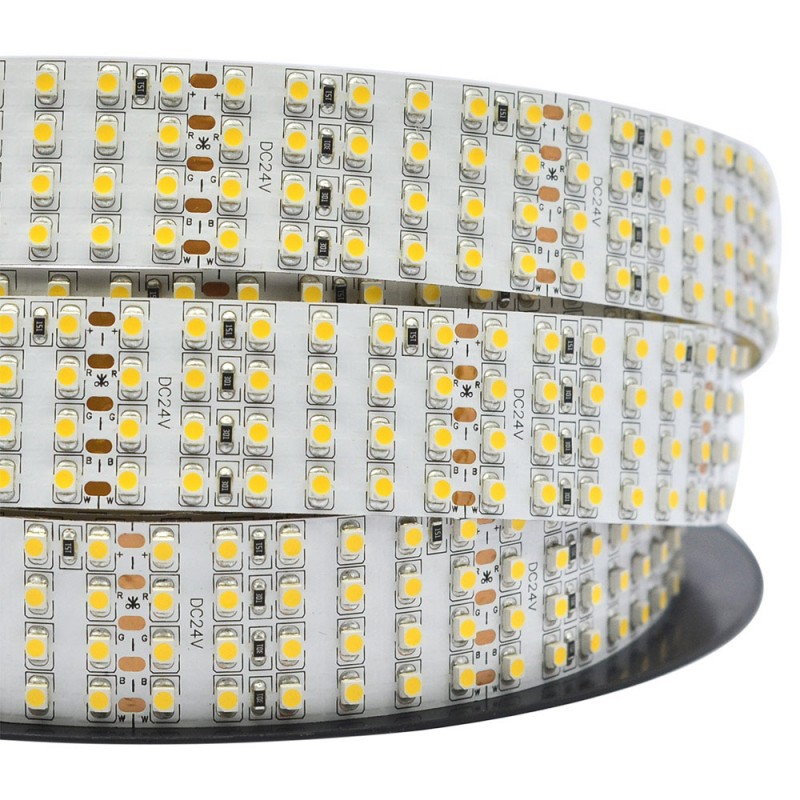

LED Strip Type: SMD 3528 480PCS/3.28ft

LED Chip: Epistar Chip

Working Temperature: -4°F (-20°C) ~ 122°F (50°C)

Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

Light Color: Warm White, Daylight White,Cool White, Red, Green, Blue, Amber (optional)

Dimension: 16.4ft/roll, every 24 PCS LED can be cut

LED Quantity: 480 LEDs per meter (39.4 in)

Lifespan: 50,000+hours

Warantty: 3 years

Dimensions: L500cm(196.8 in ) x W3.0cm(1.18 in ) x H0.20cm(0.08 in )

Input Voltage(V): 24VDC

Working Power: 7A 194W /16.4ft Max

Lamp Luminous Flux(lm): 7~8lm/LEDs 19200lm/16.4ft

Color Temperature CCT(White): Warm White(2700-3200k), Daylight White(4500-7000k), Cool White(8500-12000k) Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)

Beam Pattern: 120 degree

Water Proof: Non-waterproof IP20

CRI (Ra>): 95

Color Temperature And CRI Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose. Consider the look and feel you want your project to have. What other color lights will be present? What material and color are the materials you wish to light?

CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.

Waterproof Level Description

IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;

IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);

IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.

Installation Instruction



 You can cut the strip every few inches,                      The back of the strip is fitted with a strong                    IP67/IP68 type which will come with

allowing you to freely design your project                    3M tape, allowing you to peel and stick lights                 mounting brackets

without worrying about space requirements                 to many different surfaces.



Application

 Trademark lighting                              Logo lighting

 Channel letters lighting                       Lightboxes lighting



 Landscape layout lighting                    Stage decoration lighting



 Sign cabinets                                       Channel lights



 Cove LED lighting                                Edge lit signs



 Canopy illumination                            Off-grid lighting

Connection Diagram

​
