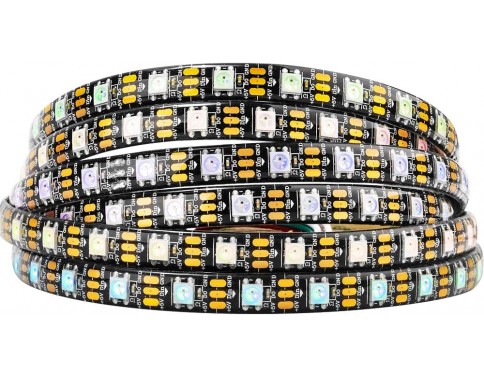

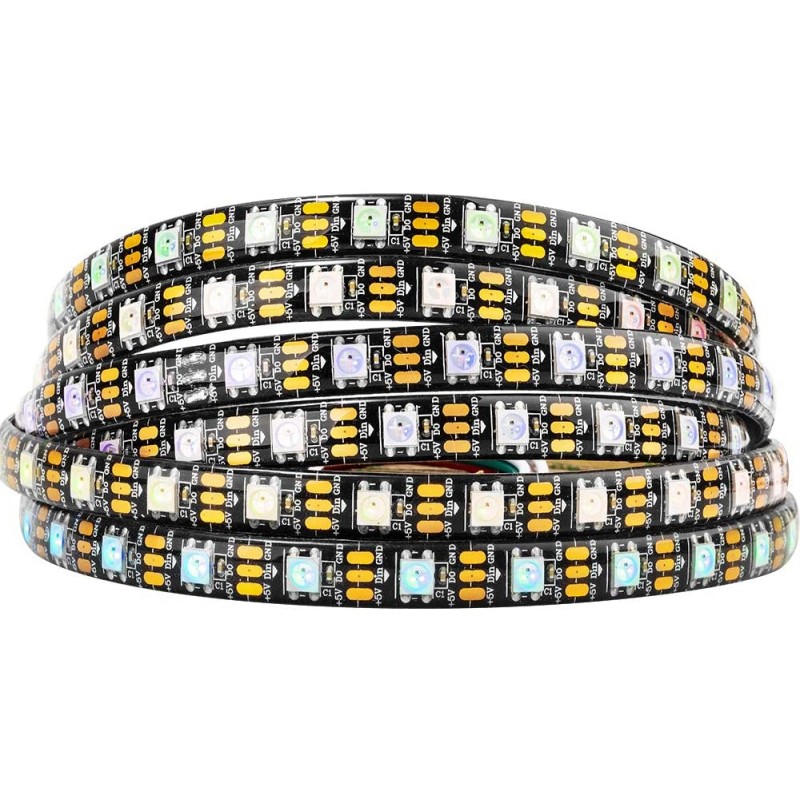

5m RGB Addressable Full Color LED Pixel Strip Dream Color Making Programmable LED Screen LED Wall Only DC5V Black PCB

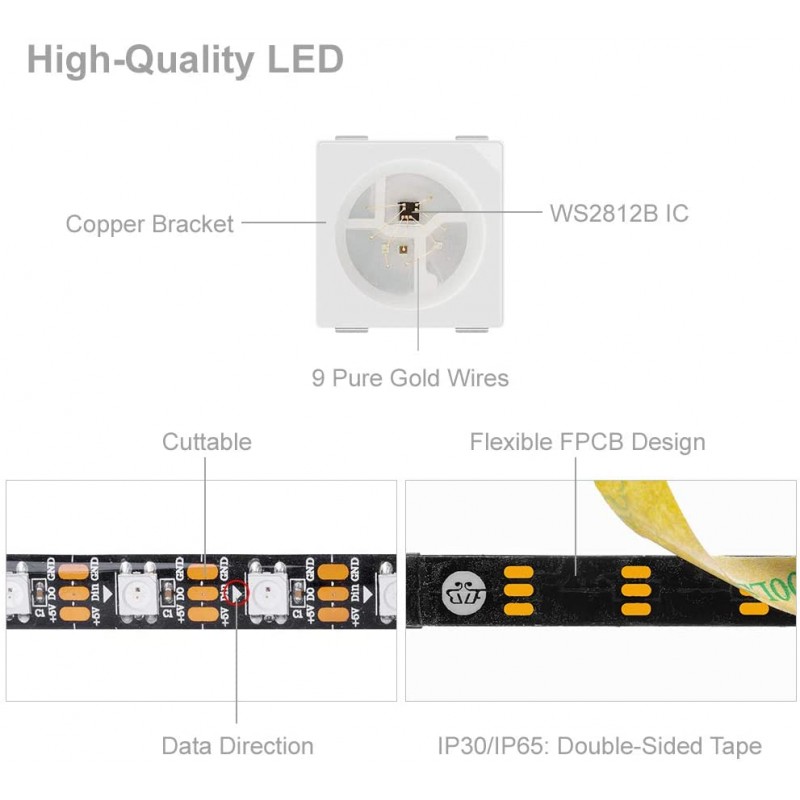

Individually Addressable.Dream full color Programmable LED Strip,WS2812B led, WS2812B IC Built in 5050SMD. Static effect, Chasing effect, special effect etc .256 brightness display and 24-bit color display.Pure Gold Wires better quality.Longer life, more stable quality
It comes with 3pin JST-SM connectors on both ends for easy installation and separated power/ground wires on both ends. Each LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.

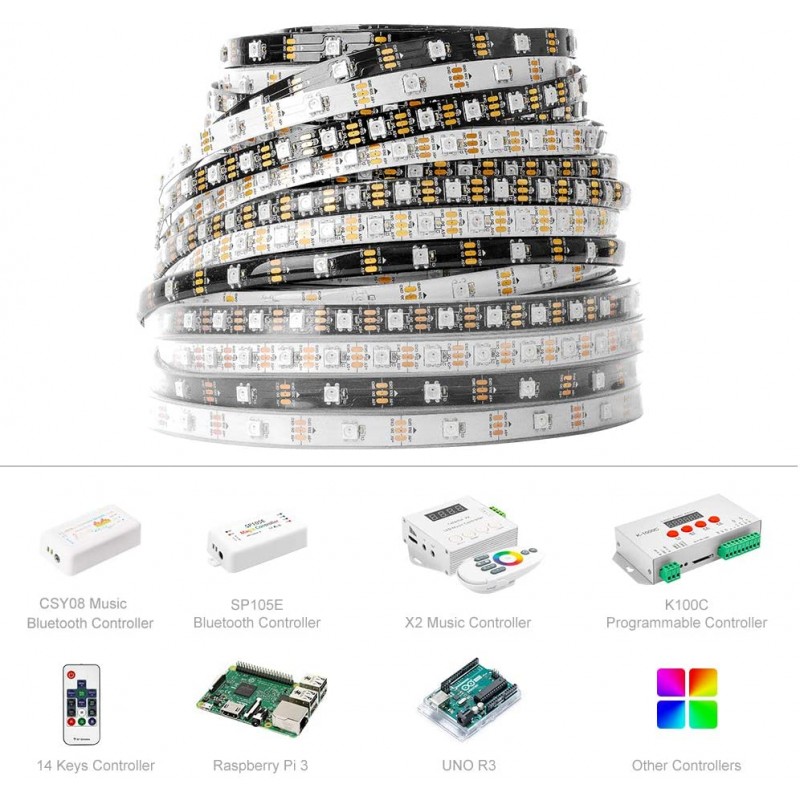

The addressable IC is built-in the 5050SMD.Each pixel can have its own color and brightness as your wish. Compatible with K1000C etc programmable controllers. Support SP110E SP105E SP108E SP110E etc APP controllers, CSY07 CSY08 X2 SP106E SP107E etc music controllers, SP501E etc smart WiFi Voice Controllers. Power adapter or controller is not included
Only Support DC5V. Do not try DC12V or DC24V power supply.Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software.Power adapter and controller need to be purchased separately

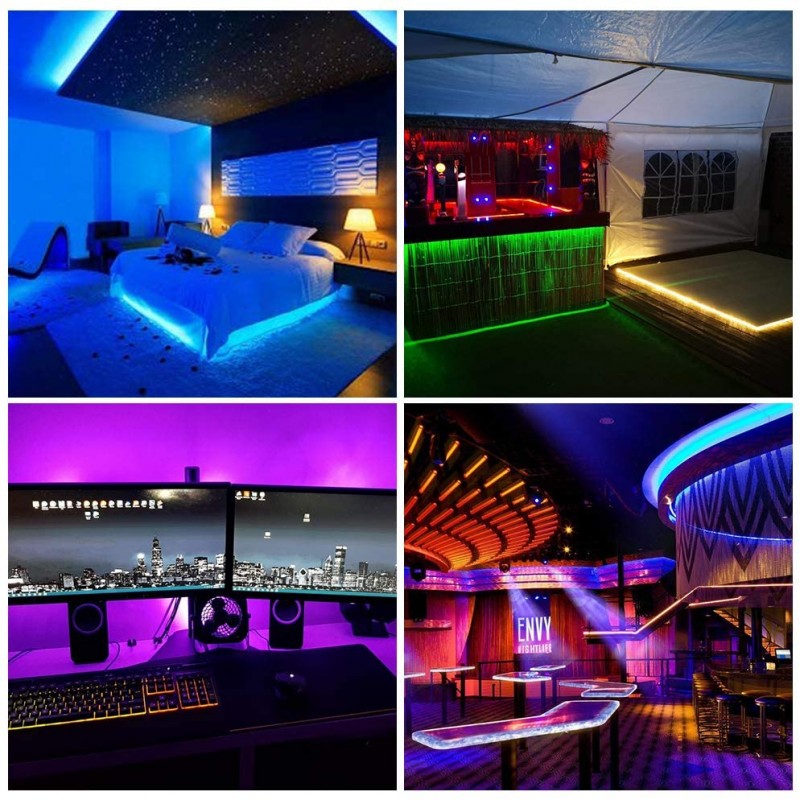

Making led screen, led wall, advertising board, apply to hotel, KTV, bars, Outdoor advertising signs, Festivel Christmas or wedding party decoration,There is adhesive tape on IP30/IP65 LED strip's back, so you can stick it to the wall or other items conveniently as you like. IP67 is available with fixing clips and screws.

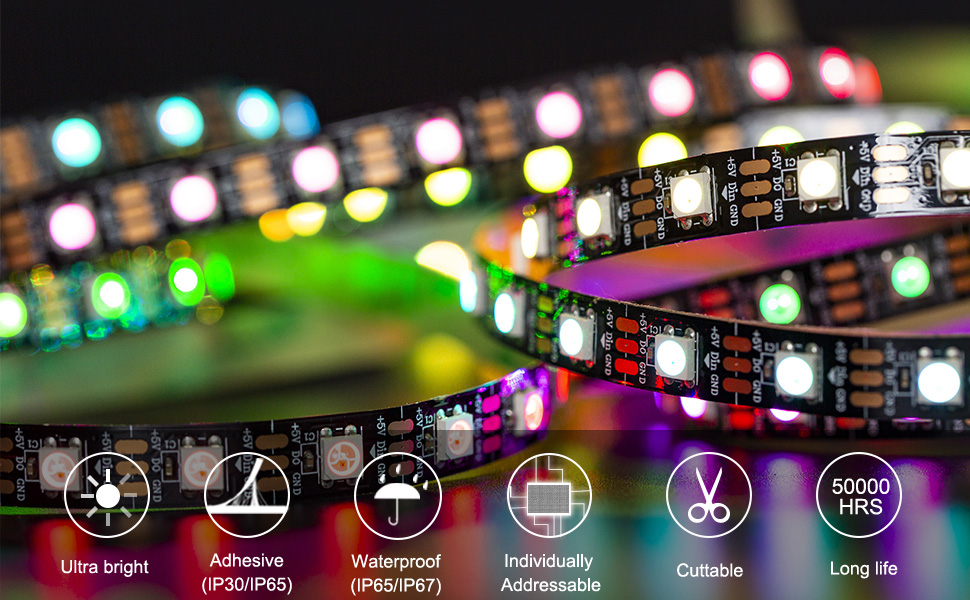

Features

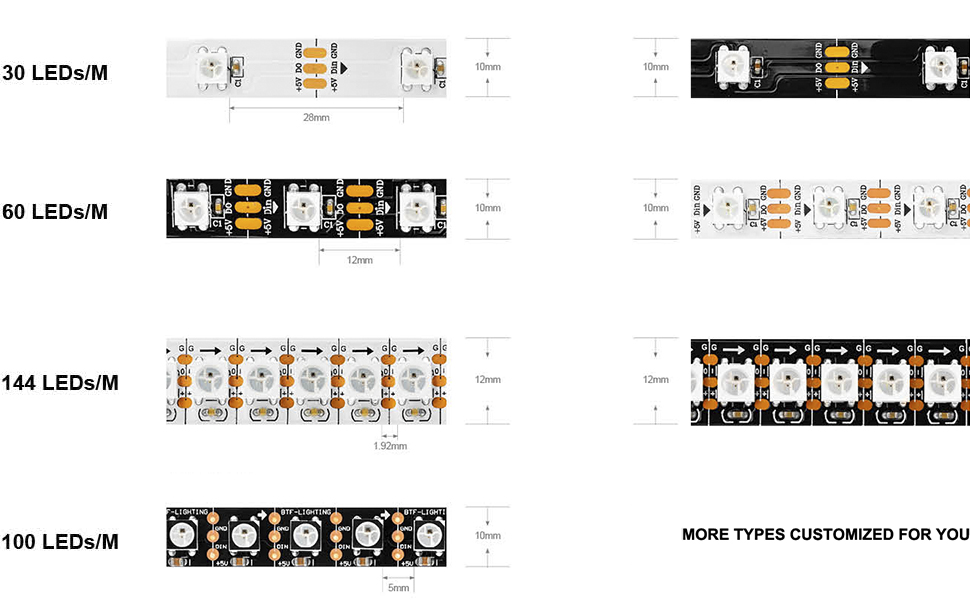

Cuttable
Every three LEDs can be cut off, LED strip still working after it is cut. Cut it to the length you just need.
Adhesive
They(Only IP30, IP65) have double sides adhesive tapes on the back.There is no double side tape on IP67 , IP67 needs screws and clips to install. You can paste IP30/IP65 on the bookcase, TV, wine cabinet, ceiling, windowsill easily.

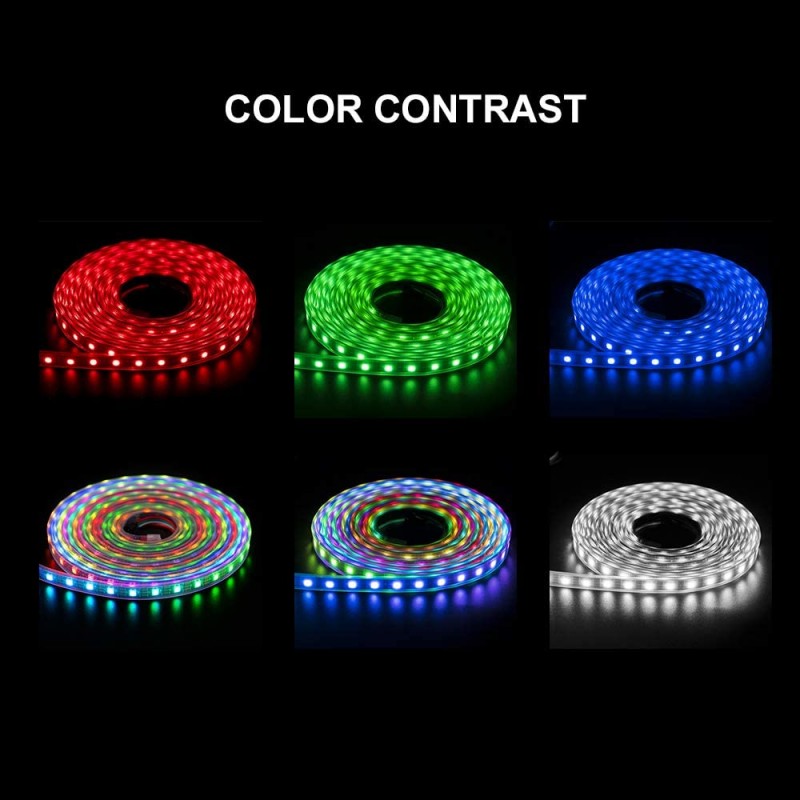

Colorful
Red, Green, Blue. Dream full color. curtain-up/ flow water/raindrop jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software.
Long life
Life span: more than 50000hrs
Waterproof level
Non-waterproof (IP30) Silicone coating waterproof (IP65) Silicone coating sheathing waterproof (IP67) Glue-Pouring Waterproof(IP68) Parameters

Brand:OmaiLighting
IC type :WS2812B IC
Color order : G R B（NOT RGB）
Gray level: 256
View angle: 120°
Input voltage: DC5V
Color: full color 24-bit
FPCB board color: Black/White
FPCB Width:10mm
Power:0.1W~0.3W/LED 30W~90W/16.4ft
Recommended power supply：DC5V20A (100W)
Standard Reel Length:16.4FT/roll
Model: WS2812 strip 5050rgb chips
Operating Temperature: -20 ~ +40°C
Led Qty: 300LEDs/16.4ft 300 pixels/16.4ft
Length x Widthx Height：1000mmx10mmx2mm
Wave length(nm):Red（620-630） ; Green（515-530） ; Blue（465-475）
Waterproof level: IP30/IP65/IP67
Double Side Tape: IP30/IP65 . There is no double side tape on IP67. Light up 1 color（red or green or blue) 0.1W/LED . Light up 2 colors (red+green) 0.2W/LED , Light up 3 colors (red+green+blue=mixed white) 0.3W/LED

Precautions
Using 5VDC power supply. Higher than 5V will destroy it.
If you need more data of WS2812 led strip, we will send it to you.

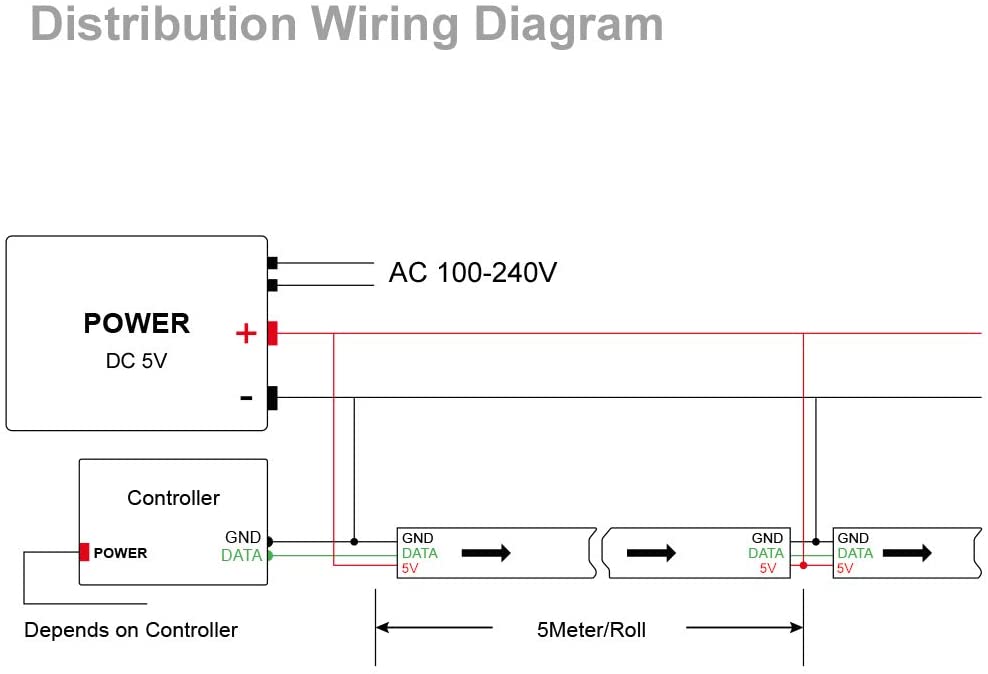

The LEDs at the far end of the strip might be dimmer because of the added resistance and voltage drop that occurs during the current flows to that end of the strip. The solution is adding DC5V voltage every 16.4ft or 32ft according to the actual situation .
LED strip is made by 50cm FPCB, so there is a solder point each 50cm(1.6FT) on strip. But this minor flaw has no any bad effect on the strip's performance. In fact, ALL the LED strips on the market are manufactured in half-meter lengths.

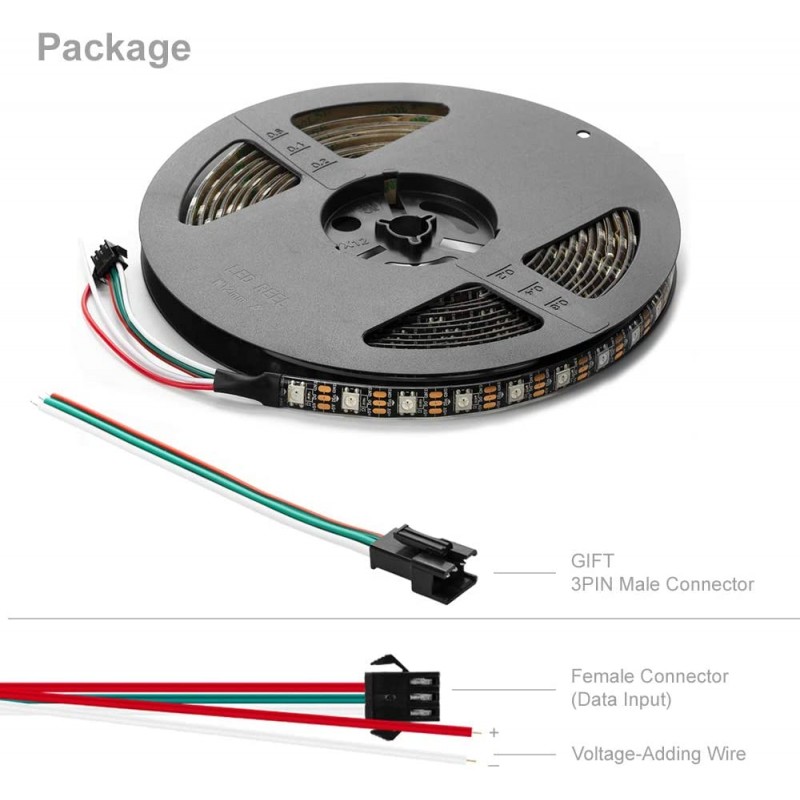

Package
1x16.4 ft 300 LEDs( 300 Pixels) WS2812 LED strip
1x3 pin male connector
Power adapter or controller is not included(Only DC5V)

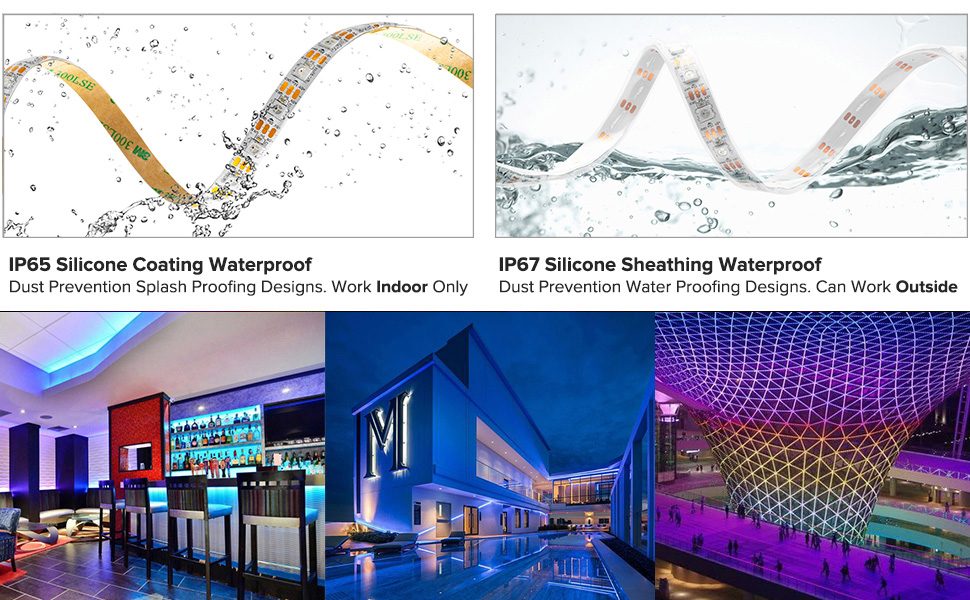

Waterproof Level
IP30: Non-waterproof . Only work indoor .
IP65: Silicone Coating Splash Proof .Dust prevention splash proofing designs. Only work indoor.
IP67: Sheating Waterproof. Dust prevention water proofing designs. Can work outdoor but the 3 PIN connectors are non-waterproof.
IP68:Glue-Pouring Waterproof.Dust prevention water proofing designs. Can work underwater.3 PIN waterproof connector. IP68 needs to be customized.
If you want to install our LED strip on the eaves, we recommend you customize IP68.

Common problem
1. Why the end of LED strip looks like red or yellow when you light up maximum brightness White Light ?
A1: It is better to add DC5V voltage every 16.4FT, because the LEDs at the far end of the strip might be dimmer due to the added resistance and voltage drop that occurs as the current flows to that end of the strip.
2. Why do I light up a few LEDs ?
A1: Please make sure you using the right power supply . For this LED strip , it is DC5V .Please don't use DC12V power supply for it . It will burn this LED strip .
A2:The controller is defective . Please make sure the controller can work fine .
3. What are the functions of the two extra wires on two ends ,one is white ,one is red ?
A1: They are using to connected the DC5V power supply when the LED strip out of voltage . So we also call them voltage adding wires .
4. Can I connect them in series when I want to control 4 reels of them ?
A1: Yes , they can end to end connect many reels .

​
